Specification
| Audio and Video | ||
| IP Camera Input | 1-ch (up to 5-ch) Up to 1080p resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
|
| Two-Way Talk | Reuse the first audio input | |
| Display | ||
| Resolution | HDTVI Input: 1080p25, 1080p30, 720p25, 720p30 AHD Input: 1080p25, 1080p30, 720p25, 720p30 HDCVI Input: 1080p25, 1080p30, 720p25, 720p30 CVBS Input: Support HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
|
| Recording | ||
| Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Resolution | For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF |
|
| Record Rate | Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: 4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N) |
|
| Bit Rate | 32 Kbps to 4 Mbps | |
| Others | Stream Type: Video, Video & Audio Audio Compression: G.711u Audio Bitrate: 64 Kbps |
|
| Video Detection And Alarm | ||
| Trigger Event | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
|
| Alarm Input | N/A | |
| Playback And Backup | ||
| Sync Playback | 4-ch | |
| Search Mode | Quick search by object or event type is supported | |
| Network | ||
| Ethernet Port | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface | |
| Network Function | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP, HTTPS | |
| Storage | ||
| Internal HDD | 1 SATA interface Up to 4 TB capacity for each disk |
|
| Auxiliary Interface | ||
| USB | Rear panel: 2 × USB 2.0 | |
| Power | ||
| Power Supply | 12 VDC, 1.5 A | |
| Power Consumption | ≤ 16 W (without HDD) | |
| Component Environment | ||
| Operational Conditions | -10 °C to 55 °C (14 °F to +31 °F) | |
| Construction | ||
| Dimensions | 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch) | |
| Net Weight | ≤ 0.8 kg (without HDD, 1.8 lb.) | |
| Warranty | ||
| Manufacturing Warranty | 1 Year | |
Description

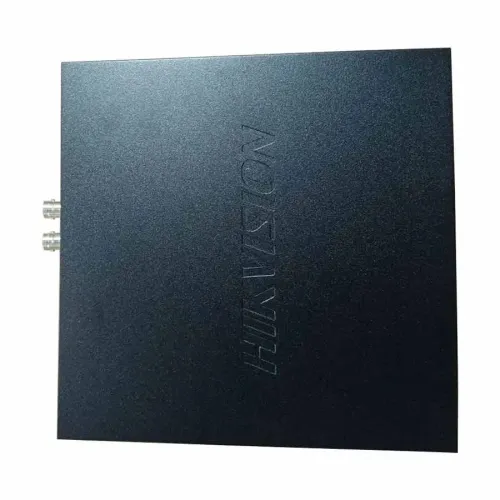

Hikvision DS-7104HGHI-ECO/M1 4 Channel Mini 1U DVR
The Hikvision DS-7104HGHI-ECO/M1 4 Channel Mini 1U DVR is a cutting-edge surveillance device with outstanding features and capabilities. This Hikvision DVR’s Motion Detection 2.0 technology uses deep learning to classify human and vehicle targets, dramatically lowering false alerts produced by non-threatening items. The Hikvision DS-7104HGHI-ECO/M1 4 Channel DVR supports various video compression standards, including H.265 Pro+/H.265 Pro/H.265, resulting in efficient storage and high-quality video output. The Hikvision 4 Channel DVR supports a variety of video inputs, including HDTVI, AHD, CVI, CVBS, and IP, as well as up to 5-channel IP camera inputs with resolutions of up to 2 MP. The Hikvision DS-7104HGHI-ECO/M1 4 Channel DVR can encode video up to 1080p Lite at 30 frames per second, resulting in clear and detailed footage. With a maximum transmission distance of 1200 m for 720p HDTVI transmissions, it allows for easy installation. The Hikvision DS-7104HGHI-ECO/M1 4 Channel DVR has HDMI and VGA outputs with resolutions up to 1920 × 1080 at 60 Hz, enabling simultaneous video output. Audio features include one RCA audio input and four channels via coaxial cable, as well as two-way audio functionality for improved communication. The Hikvision DS-7104HGHI-ECO/M1 4 Channel Mini 1U DVR offers simultaneous playback for up to four channels, making it simple to evaluate footage. It records in a variety of video compression formats, with customizable frame rates and bitrates for optimal performance. The Hikvision DS-7104HGHI-ECO/M1 4 Channel DVR has a total bandwidth capacity of 64 Mbps and can enable remote connections from up to 32 users. The network interface features a self-adaptive Ethernet connector, and the DVR supports several network protocols, including TCP/IP, DHCP, and Hik-Connect. The Hikvision DS-7104HGHI-ECO/M1 4 Channel Mini 1U DVR is an excellent solution for complete surveillance needs, with a SATA interface that supports up to 4 TB of storage and two USB 2.0 ports for quick data transfer.
